Best quality Solar Panel Home Use - 144 half cells Mono Solar Panel 460W – Yifeng Detail:

Product Details

144 CELL multicrystalline module 335W,340W,345W

Description

(1).Ideal for large scale installations
-Reduce BOS cost by connecting more modules in a string

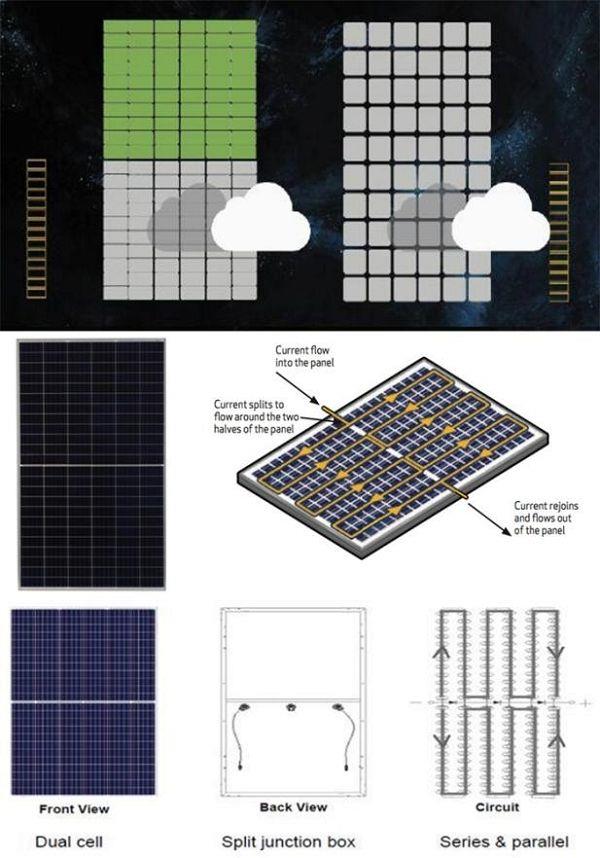

(2).Half-cell design brings higher efficiency
- New cell string layout and split J-box location to reduct the energy loss caused by shading between modules
- LRF integrated to gain more power,need avoid light sensitive case operating temperatures
(3).Highly reliable due to stringent quality control
- Over30 in-house tests(UV,TC,HF,and many more)
Complete System and Product Certifications
IEC 61215,IEC61730,UL1703,IEC61701,IEC62716
ISO 9001 :Quality Management System
OHSAS 18001: Occupational Health and Safety Management System

Product Parameter

Mechanical Parameters Working Conditions
Cell(mm) Poly 156.75×78.375 Maximum System Voltage DC 1500V(IEC/UL)
Weight(kg) 23 Operating Temp. -40℃~+85℃
Dimensions(L*W*H)(mm) 2000x996x40 Maximum Series Fuse(A) 15
Cable Length(mm) N 144mm/P 285mm Static loading 5400Pa
Cable cross section size(mm2) 4 Grounding conductivity <0.1Ω
No. of cells and connections 144(6×24) NOCT 45±2℃
No. of diodes 3 Application Class Class A
Packaging 27pcs per pallet Insulation Resistance ≥100MΩ
594pcs per 40′HC
Guarantee
10-year Warranty for Materials and Processing

25-year Warranty for Extra Linear Power Output.

Product Feature

Electrical Characteristics Test Uncertainty For Pmax:±3
Model Number

TSM-335W

TSM-340W

TSM-345W

Testing Condition

STC

NOCT

STC

NOCT

STC

NOCT

Rated Maximum Power at STC(w)

335

247

340

251

345

255

Open Circuit Voltage(Voc/V)

45.9

42.5

46.1

42.7

46.3

42.8

Maximum Power Voltage(Vmp/V)

37.4

34.6

37.5

34.9

37.8

35.1

Short Circuit Current(Isc/A)

9.45

7.63

9.50

7.67

9.55

7.71

Maximum Power Current(Imp/A)

8.96

7.15

9.05

7.20

9.14

7.26

Module Efficiency(nm/%)

16.9

17.1

17.4

Power Tolerance 0~ +5W
Temperature Coefficient of Isc +0.050%/℃
Temperature Coefficient of Pmax -0.410%/℃
STC(Standard Testing Conditions):Irradiance 1000W/㎡,Cell Temperature 25℃,Spectra at AM1.5
NOCT(Nominal Operating Cell Temperature):Irradiance 800W/㎡,Ambient Temperature 20℃,Spectra at AM1.5,Wind at 1m/S

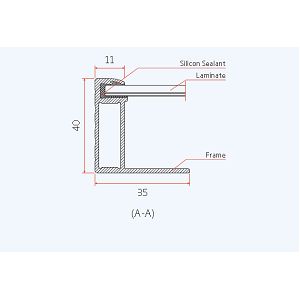

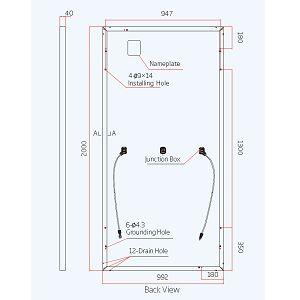

Mechanical Parameter

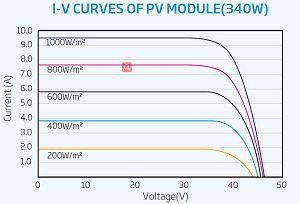

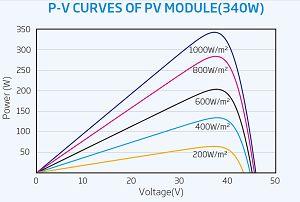

I- V Curve


Application Project


The working temperature of the component is reduced, the probability of hot spot is greatly reduced, and the reliability and safety of the component are improved.In terms of shadow shading, due to its unique design, it has better anti-shading performance than conventional components.

FAQ

Q1. 1.Are you factory or trade company?

A1: We are solar panel factory with over 10 years history.

Q2. Can we customize the size of the solar panel?

A2: Yes, we accept customized order with MOQ 100 pcs.

Q3. What kind of certification do you have ?

A3: Our solar panels are approved by CE, SGS, ROHS, SONCAP, UL,VDE IEC,etc.

Q4. What is the warranty for the solar panel?

A4: 20 years warranty.
