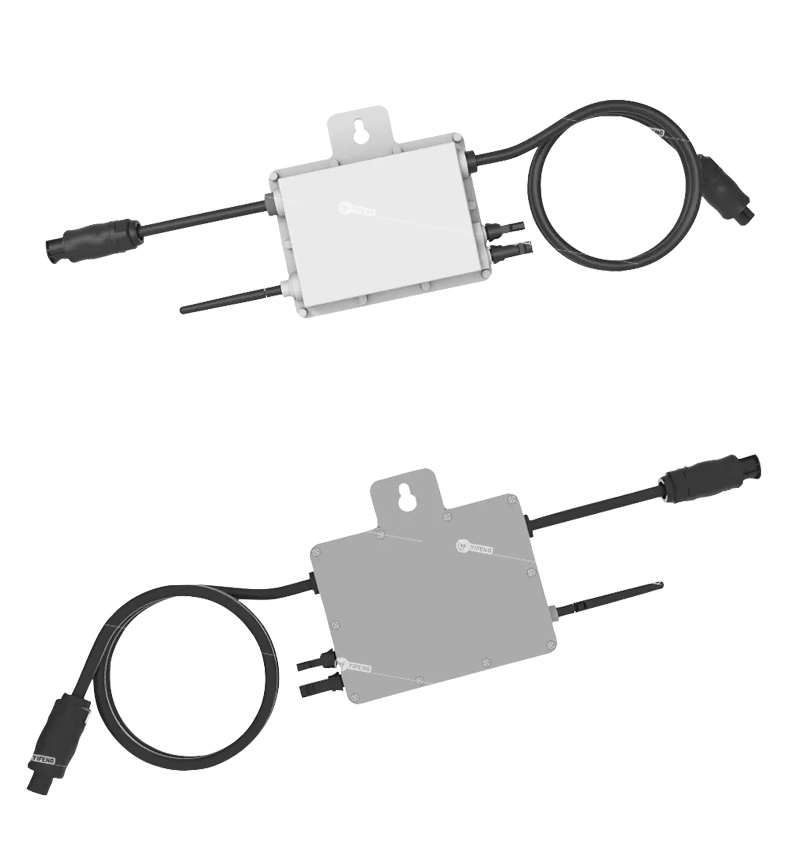

Deye Micro Inverter 300w 500w 300watt 500watt 230V 220v Supporting reactive power compensation
|

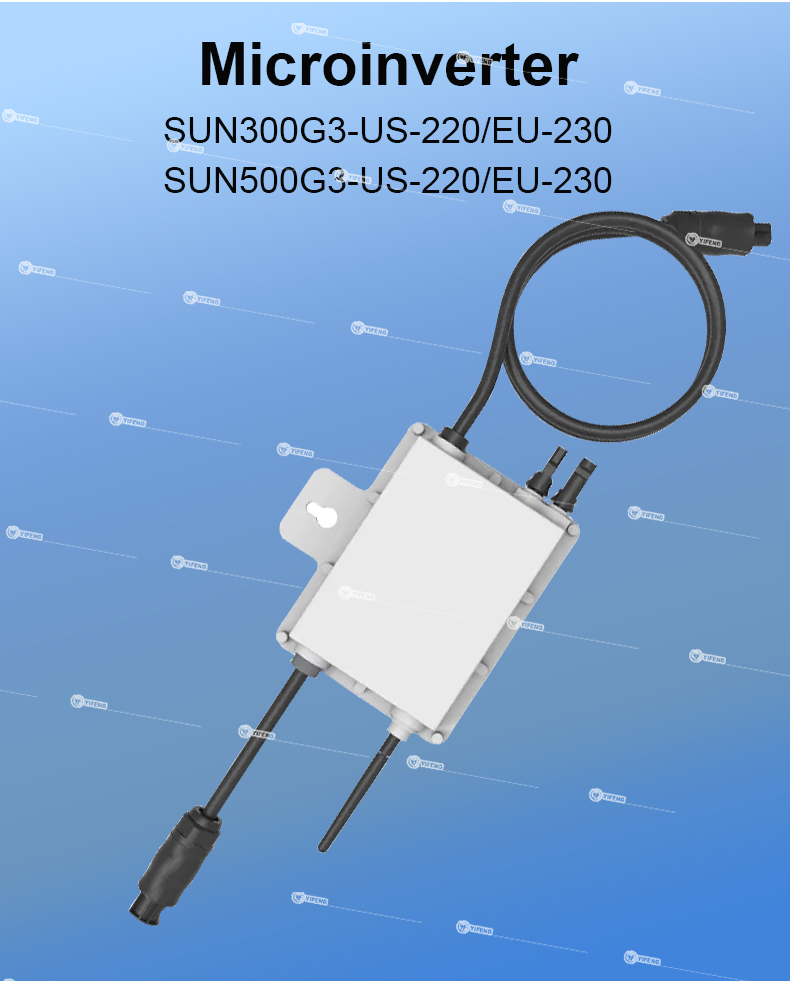

Model
|
SUN300G3-US-220
|
SUN300G3-EU-230
|
SUN500G3-US-220
|
SUN500G3-EU-230
|
|
Input Data (DC)
|
||||
|
Recommended input Power (STC)
|
210~400W (1 Piece)
|
210~600W (1 Piece)
|
||
|
Maximum input DC Voltage
|
60V
|
|||
|
MPPT Voltage Range
|
25~55V
|
|||
|
Full Load DC Voltage Range (V)
|
24.5~55V
|
40~55V
|
||
|
Max. DC Short Circuit Current
|
19.5A
|
|||
|
Max. input Current
|
13A
|
|||
|
No.of MPP Trackers
|
1
|
|||
|
No.of Strings per MPP Tracker
|
1
|
|||
|
Output Data (AC)
|
||||
|
Rated output Power
|
300W
|
500W
|
||
|
Rated output Current
|
1.4A
|
1.3A
|
2.3A
|
2.2A
|
|
Nominal Voltage / Range (this may
vary with grid standards) |
220V/0.85Un-1.1Un
|
230V/0.85Un-1.1Un
|
220V/0.85Un-1.1Un
|
230V/0.85Un-1.1Un
|
|
Nominal Frequency / Range
|
50 / 60Hz
|
|||
|
Extended Frequency / Range
|
45~55Hz / 55~65Hz
|
|||
|
Power Factor
|
>0.99
|
|||
|
Maximum units per branch
|
17
|
10
|
||
|
Effiffifficiency
|
|
|||
|
CEC Weighted Effiffifficiency
|
95%
|
|||
|
Peak Inverter Effiffifficiency
|
96.5%
|
|||
|
Static MPPT Effiffifficiency
|
99%
|
|||
|
Night Time Power Consumption
|
50mW
|
|||
|
Mechanical Data
|
||||
|
Ambient Temperature Range
|
-40~65℃
|
|||
|

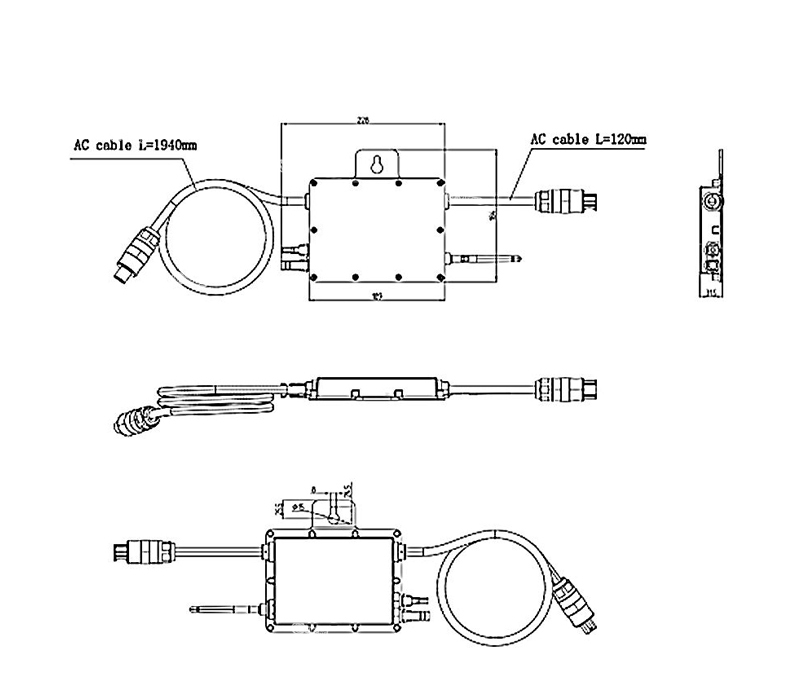

Size (mm)
|
189W×184H×31.5D (Without mounting bracket and cable)
|
|||
|
Weight (kg)
|
2.15
|
|||
|
Cooling
|
Natural cooling
|
|||
|
Enclosure Environmental Rating
|
IP67
|
|||
|
Features
|
||||
|
Compatibility
|
Compatible with 60~72 cell PV modules
|
|||
|
Communication
|
Power line / WIFI / Zigbee
|
|||
|
Grid Connection Standard
|
EN50549-1, VDE0126-1-1, VDE 4105, ABNT NBR 16149, ABNT NBR 16150, ABNT NBR 62116,
RD1699, UNE 206006 IN, UNE 206007-1 IN, IEEE1547
|
|||
|
Safety EMC / Standard
|
UL 1741, IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-2, IEC61000-3-3
|
|||
|
Warranty
|
10 years
|
|||
