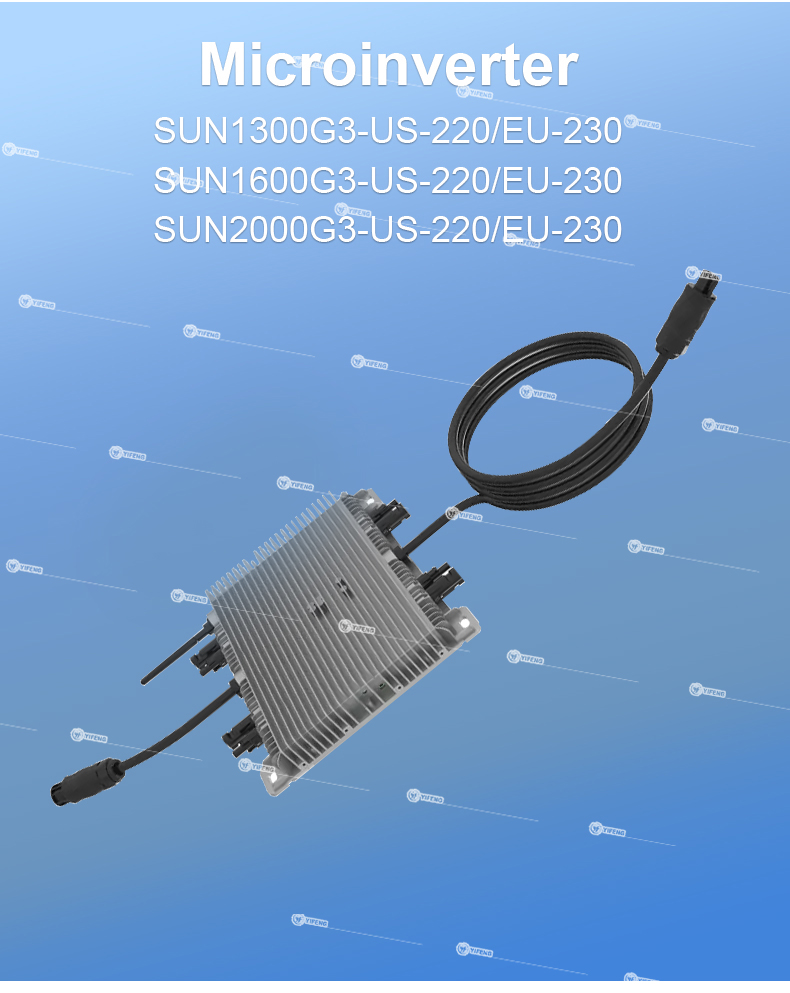

deye micro inverter SUN2000G3 -US-220 SUN2000G3 -EU-230 2000w 2000watt 2kw

1. Colorful touch LCD, IP65 protection degree

2. 6 time periods for battery charging/discharging

3. Max. charging/discharging current of 120A

4. Frequency droop control, Max.16pcs parallel

5. DC couple and AC couple to retrofit existing solar system

6. Support storing energy from diesel generator

7. 48V low voltage battery, safe and reliable

8. Unique Smart Load application and Grid peak shaving function

9. 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well

Place of Origin: Jiangsu, China

Network: SDK

Brand Name: deye

Model Number: SUN1300/1600/2000G3-US-220/EU-230

Type: DC/AC Inverters

Output Type: Single

Output Frequency: 50 Hz / 60 Hz

Size: 267W*300H*42D

Weight: 5.2

Certificate: UL 1741, IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3

Type: Microinverter

Cooling concept: Natural cooling

Product Detail

Effiffifficiency
CEC Weighted Effiffifficiency	95%
Peak Inverter Effiffifficiency	96.5%
Static MPPT Effiffifficiency	99%
Night Time Power Consumption	50mW
Mechanical Data
Ambient Temperature Range	-40~65℃

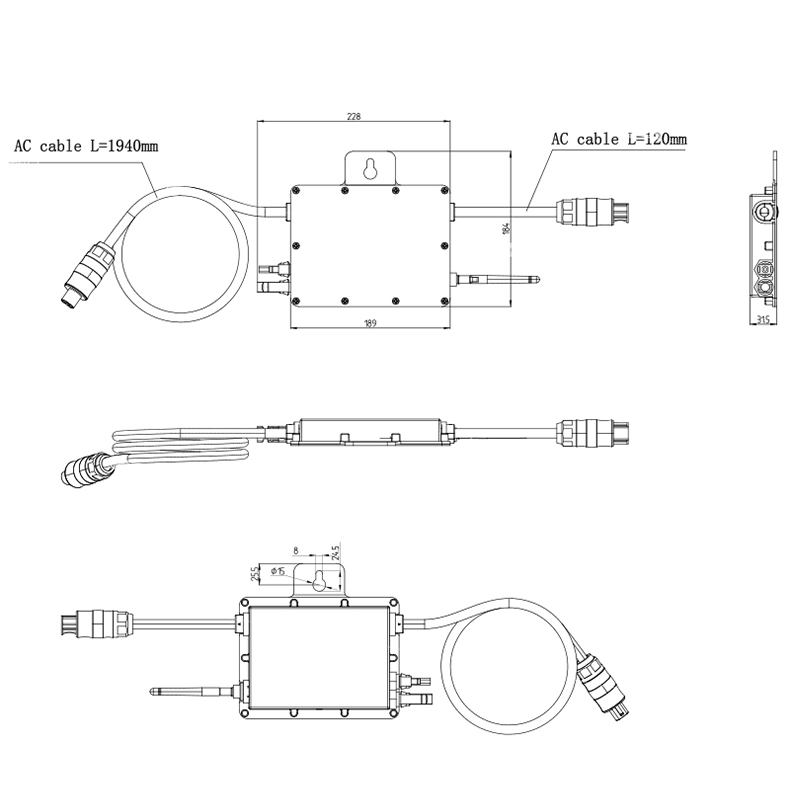

Size (mm)	267W×300H×42D (Without mounting bracket and cable)
Weight (kg)	5.2
Cooling	Natural cooling
Enclosure Environmental Rating	IP67
Features
Compatibility	Compatible with 60~72 cell PV modules
Communication	Power line / WIFI / Zigbee
Grid Connection Standard	EN50549-1, VDE0126-1-1, VDE 4105, ABNT NBR 16149, ABNT NBR 16150, ABNT NBR 62116, RD1699, UNE 206006 IN, UNE 206007-1 IN, IEEE1547
Safety EMC / Standard	UL 1741, IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-2, IEC61000-3-3
Warranty	10 years
