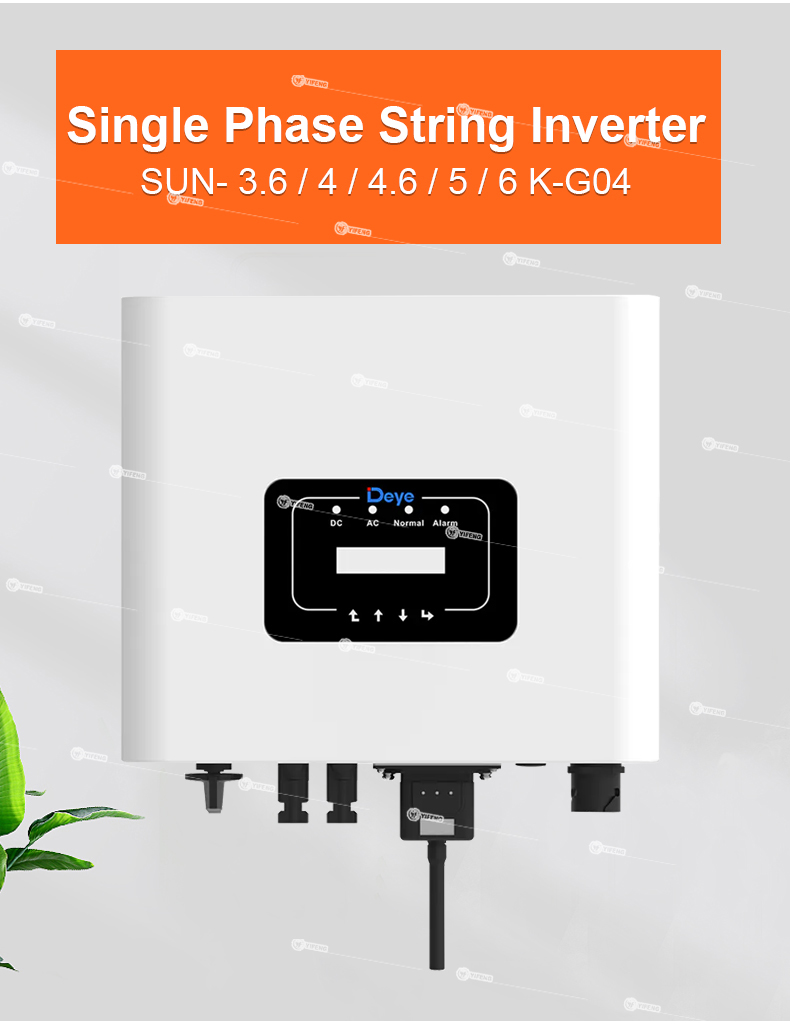

Deye on grid inverter SUN 3.6KW 4KW4.6k 5kw G03 EU standard single phase Deye on grid solar inverter mico invertor or
|
Model
|
SUN-3.6K-G04
|
SUN-4K-G04
|
SUN-4.6K-G04
|
SUN-5K-G04
|
SUN-6K-G04
|
|
Input Side
|
|||||
|
Max. DC Input Power (kW)
|
4.7
|
5.2
|
5.98
|
6.5
|
7.8
|
|
Max. DC Input Voltage (V)
|
550
|
||||
|
Start-up DC Input Voltage (V)
|
80
|
||||
|
MPPT Operating Range (V)
|
70~500
|
||||
|
Max. DC Input Current (A)
|
13+13
|
||||
|
Max. Short Circuit Current (A)
|
19.5+19.5
|
||||
|
No.of MPP Trackers
|
2
|
||||
|
No.of Strings per MPP Tracker
|
1
|
||||
|
Output Side
|
|||||
|
Rated Output Power (kW)
|
3.6
|
4
|
4.6
|
5
|
6
|
|
Max. Active Power (kW)
|
3.96
|
4.4
|
5.06
|
5.5
|
6.6
|
|
Nominal Output Voltage / Range (V)
|
L/N/PE 220/230V (Optional)
|
||||
|
Rated Grid Frequency (Hz)
|
50 / 60 (Optional)
|
||||
|
Operating Phase
|
Single phase
|
||||
|
Rated AC Grid Output Current (A)
|
16.4/15.7
|
18.2/17.4
|
20.9/20
|
22.7/21.7
|
27.3/26.1
|
|
Max. AC Output Current (A)
|
18/17.2
|
20/19.1
|
23/22
|
25/23.9
|
30/28.7
|
|
Output Power Factor
|
0.8 leading to 0.8 lagging
|
||||
|
Grid Current THD
|
<3%
|
||||
|
DC Injection Current (mA)
|
<0.5%
|
||||
|
Grid Frequency Range
|
47~52 or 57~62 (Optional)
|
||||
|
Effiffifficiency
|
|||||
|
Max. Effiffifficiency
|
97.3%
|
97.5%
|
97.5%
|
97.5%
|
97.5%
|
|
Euro Effiffifficiency
|
97.1%
|
97.3%
|
97.3%
|
97.3%
|
97.3%
|
|
MPPT Effiffifficiency
|
>99%
|
||||
|
Protection
|
|||||
|
DC Reverse-Polarity Protection
|
Yes
|
||||
|
AC Short Circuit Protection
|
Yes
|
||||
|
AC Output Overcurrent Protection
|
Yes
|
||||
|
Output Overvoltage Protection
|
Yes
|
||||
|
Insulation Resistance Protection
|
Yes
|
||||
|
Ground Fault Monitoring
|
Yes
|
||||
|
Anti-islanding Protection
|
Yes
|
||||
|
Temperature Protection
|
Yes
|
||||
|
Integrated DC Switch
|
Yes
|
||||
|
Remote software upload
|
Yes
|
||||
|
Remote change of operating parameters
|
Yes
|
||||
|
Surge protection
|
DC Type II / AC Type II
|
||||
|
General Data
|
|||||||
|

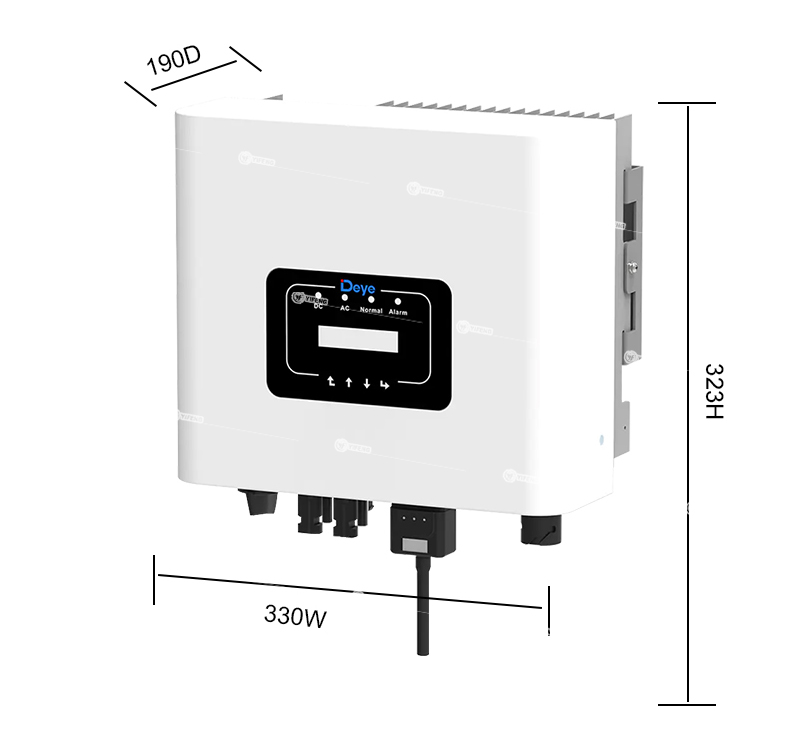

Size (mm)
|
330W×323H×190D
|
||||||
|
Weight (kg)
|
7.5
|
||||||
|
Topology
|
Transformerless
|
||||||
|
Internal Consumption
|
<1W (Night)
|
||||||
|
Running Temperature
|
-25~65℃, >45℃ derating
|
||||||
|
Ingress Protection
|
IP65
|
||||||
|
Noise Emission (Typical)
|
<35 dB
|
||||||
|
Cooling Concept
|
Natural cooling
|
||||||
|
Max. Operating Altitude Without Derating
|
2000m
|
||||||
|
Warranty
|
5 years
|
||||||
|
Grid Connection Standard
|
CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
|
||||||
|
Operating Surroundings Humidity
|
0-100%
|
||||||
|
Safety EMC / Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
||||||
|
Features
|
|||||||
|
DC Connection
|
MC-4 mateable
|
||||||
|
AC Connection
|
IP65 rated plug
|
||||||
|
Display
|
LCD1602
|
||||||
|
Interface
|
RS485/RS232/Wififi/LAN
|
||||||
