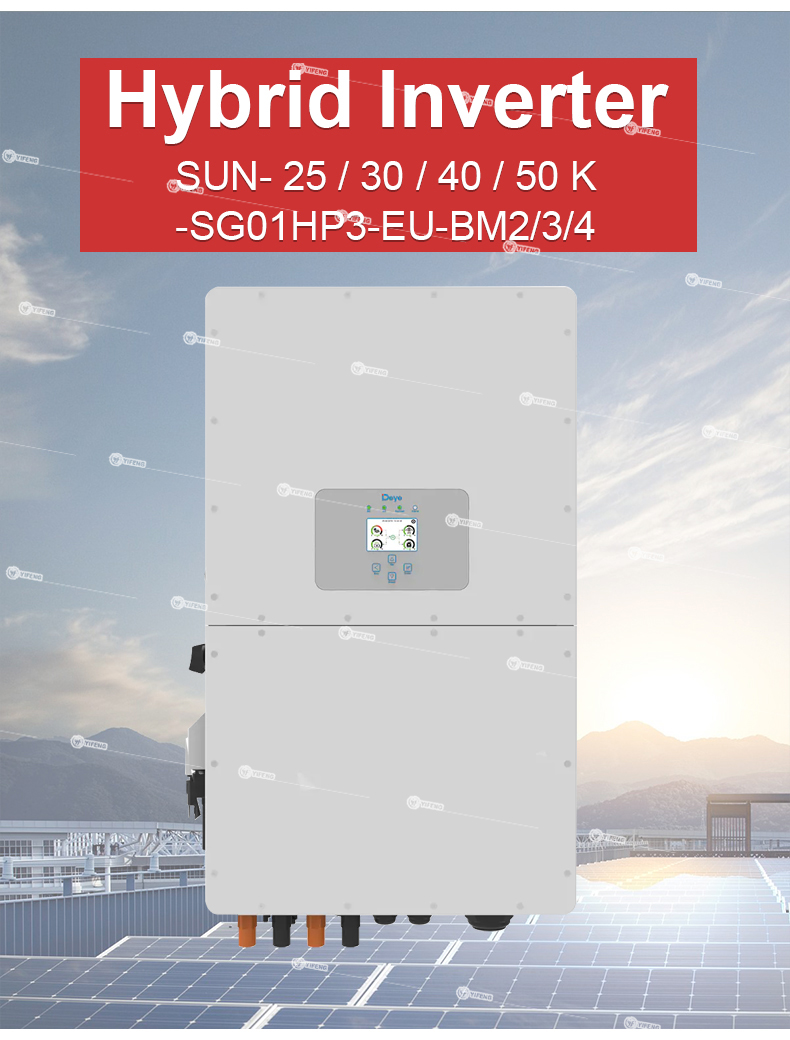

Deye Smart cooling 25000w 30000w 40000w 50000w SUN- 25 / 30 / 40 / 50 K-SG01HP3-EU-BM2/3/4 Three Phase Hybrid Inverter
|
Model
|
SUN-25K-SG01HP3
-EU-BM2
|
SUN-30K-SG01HP3
-EU-BM3
|
SUN-40K-SG01HP3
-EU-BM4
|
SUN-50K-SG01HP3
-EU-BM4
|
|
Battery Input Data
|
Li-lon
|
|||
|
Battery Type
|
160~800
|
|||
|
Battery Voltage Range (V)
|
50+50
|
|||
|
Max. Discharging Current (A)
|
50+50
|
|||
|
Number of battery input
|
2
|
|||
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
|||
|
PV String Input Data
|
||||
|
Max. DC Input Power (W)
|
32500
|
39000
|
52000
|
65000
|
|
Max. DC Input Voltage (V)
|
1000
|
|||
|
Start-up Voltage (V)
|
180
|
|||
|
MPPT Range (V)
|
150-850
|
|||
|
Full Load DC Voltage Range (V)
|
450-850
|
360-850
|
360-850
|
450-850
|
|
Rated DC Input Voltage (V)
|
600
|
|||
|
PV Input Current (A)
|
36+36
|
36+36+36
|
36+36+36+36
|
|
|
Max. PV I (A)
|
55+55
|
55+55+55
|
55+55+55+55
|
|
|
No.of MPP Trackers
|
2
|
3
|
4
|
|
|
No.of Strings per MPP Tracker
|
2
|
|||
|
AC Output Data
|
||||||||
|
Rated AC Output and UPS Power (W)
|
25000
|
30000
|
40000
|
50000
|
||||
|
Max. AC Output Power (W)
|
27500
|
33000
|
44000
|
55000
|
||||
|
AC Output Rated Current (A)
|
37.9/36.3
|
45.5/43.5
|
60.7/58
|
75.8/72.5
|
||||
|
Max. AC Current (A)
|
50
|
60
|
70
|
83.3
|
||||
|
Max. Continuous AC Passthrough (A)
|
150
|
|||||||
|
Peak Power (offff grid)
|
1.5 time of rated power, 10 S
|
|||||||
|
Generator input/Smart load
/AC couple current (A) |
37.9 / 150 / 37.9
|
45.5 / 150 / 45.5
|
60.8 / 150 / 60.8
|
75.8 / 150 / 75.8
|
||||
|
Power Factor
|
0.8 leading to 0.8 lagging
|
|||||||
|
Output Frequency and Voltage
|
50/60Hz; 3L/N/PE 220/380, 230/400Vac
|
|||||||
|
Grid Type
|
Three Phase
|
|||||||
|
DC injection current (mA)
|
<0.5%1n
|
|||||||
|
Effiffifficiency
|
||||||||
|
Max. Effiffifficiency
|
97.60%
|
|||||||
|
Euro Effiffifficiency
|
97.00%
|
|||||||
|
MPPT Effiffifficiency
|
99.90%
|
|||||||
|
Protection
|
||||||||
|
Integrated
|
PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge protection
|
|||||||
|
Output Over Voltage Protection
|
DC Type II/AC Type III
|
|||||||
|
Certififications and Standards
|
||||||||
|
Grid Regulation
|
EN50549, AS4777.2:2015, VDE0126-1-1, IEC61727, VDEN4105-2018, G99
|
|||||||
|
Safety EMC / Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
|||||||
|
General Data
|
||||
|
Operating Temperature Range (℃)
|
-40~60℃, >45℃ derating
|
|||
|
Cooling
|
Smart cooling
|
|||
|
Noise (dB)
|
<45 dB
|
|||
|
Communication with BMS
|
RS485; CAN
|
|||
|
Weight (kg)
|
75
|
|||
|

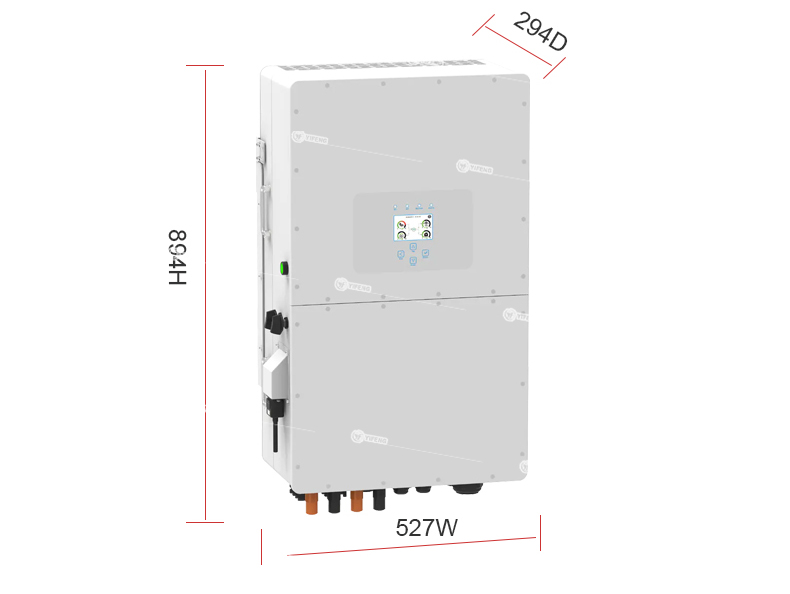

Size (mm)
|
527W×894H×294D
|
|||
|
Protection Degree
|
IP65
|
|||
|
Installation Style
|
Wall-mounted
|
|||
|
Warranty
|
5 years
|
|||
