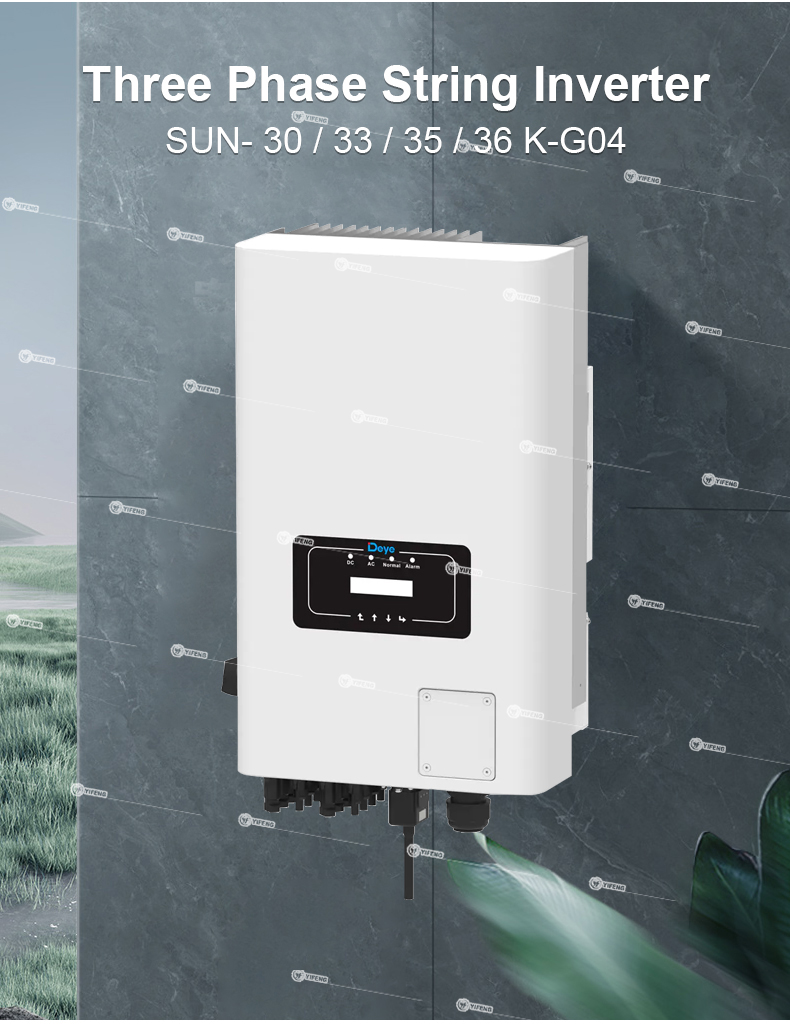

Deye Three Phase String Inverter on grid inverter SUN- 30 / 33 / 35 / 36 K-G04 with String intelligent monitoring
|
Mode
|
SUN-30K-G04
|
SUN-33K-G04
|
SUN-35K-G04
|
SUN-36K-G04
|
|
Input Side
|
||||
|
Max. DC Input Power (kW)
|
39
|
42.9
|
45.5
|
46.8
|
|
Max. DC Input Voltage (V)
|
1000
|
|||
|
Start-up DC Input Voltage (V)
|
250
|
|||
|
MPPT Operating Range (V)
|
200~850
|
|||
|
Max. DC Input Current (A)
|
40+40
|
|||
|
Max. Short Circuit Current (A)
|
60+60
|
|||
|
No.of MPP Trackers
|
2
|
|||
|
No.of Strings per MPP Tracker
|
3
|
|||
|
Output Side
|
||||
|
Rated Output Power (kW)
|
30
|
33
|
35
|
36
|
|
Max. Active Power (kW)
|
33
|
36.3
|
38.5
|
39.6
|
|
Nominal Output Voltage / Range (V)
|
3L/N/PE 220/380V, 230/400V
|
|||
|
Rated Grid Frequency (Hz)
|
50 / 60 (Optional)
|
|||
|
Operating Phase
|
Three phase
|
|||
|
Rated AC Grid Output Current (A)
|
45.5/43.5
|
50/47.8
|
53/50.7
|
54.5/52.2
|
|
Max. AC Output Current (A)
|
50/47.9
|
55/52.6
|
58.3/55.8
|
60/57.4
|
|
Output Power Factor
|
0.8 leading to 0.8 lagging
|
|||
|
Grid Current THD
|
<3%
|
|||
|
DC Injection Current (mA)
|
<0.5%
|
|||
|
Grid Frequency Range
|
47~52 or 57~62 (Optional)
|
|||
|
Effiffifficiency
|
||||
|
Max. Effiffifficiency
|
98.6%
|
|||
|
Euro Effiffifficiency
|
97.8%
|
|||
|
MPPT Effiffifficiency
|
>99%
|
|||
|
Protection
|
||||
|
DC Reverse-Polarity Protection
|
Yes
|
|||
|
AC Short Circuit Protection
|
Yes
|
|||
|
AC Output Overcurrent Protection
|
Yes
|
|||
|
Output Overvoltage Protection
|
Yes
|
|||
|
Insulation Resistance Protection
|
Yes
|
|||
|
Ground Fault Monitoring
|
Yes
|
|||
|
Anti-islanding Protection
|
Yes
|
|||
|
Temperature Protection
|
Yes
|
|||
|
Integrated DC Switch
|
Yes
|
|||
|
Remote software upload
|
Yes
|
|||
|
Remote change of operating parameters
|
Yes
|
|||
|
Surge protection
|
DC Type II / AC Type II
|
|||
|
General Data
|
||||
|

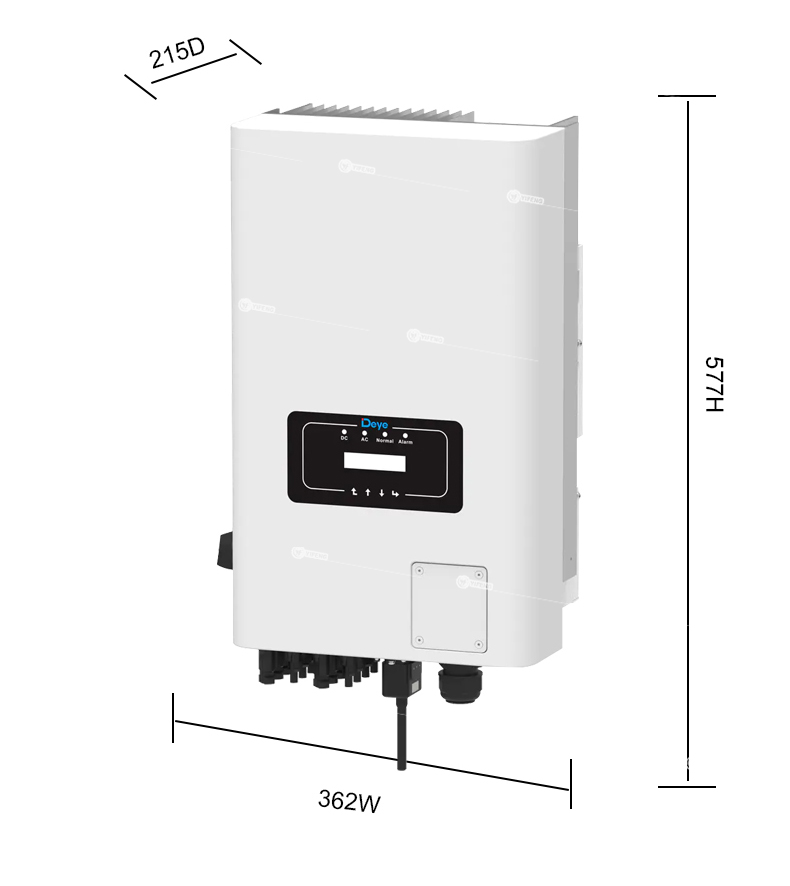

Size (mm)
|
362W×577H×215D
|
|||
|
Weight (kg)
|
25.5
|
|||
|
Topology
|
Transformerless
|
|||
|
Internal Consumption
|
<1W (Night)
|
|||
|
Running Temperature
|
-25~65℃, >45℃ derating
|
|||
|
Ingress Protection
|
IP65
|
|||
|
Noise Emission (Typical)
|
<50 dB
|
|||
|
Cooling Concept
|
Smart cooling
|
|||
|
Max. Operating Altitude Without Derating
|
2000m
|
|||
|
Warranty
|
5 years
|
|||
|
Grid Connection Standard
|
CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
|
|||
|
Operating Surroundings Humidity
|
0-100%
|
|||
|
Safety EMC / Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
|||
|
Features
|
||||
|
DC Connection
|
MC-4 mateable
|
|||
|
AC Connection
|
IP65 rated plug
|
|||
|
Display
|
LCD1602
|
|||
|
Interface
|
RS485/RS232/Wififi/LAN
|
|||
