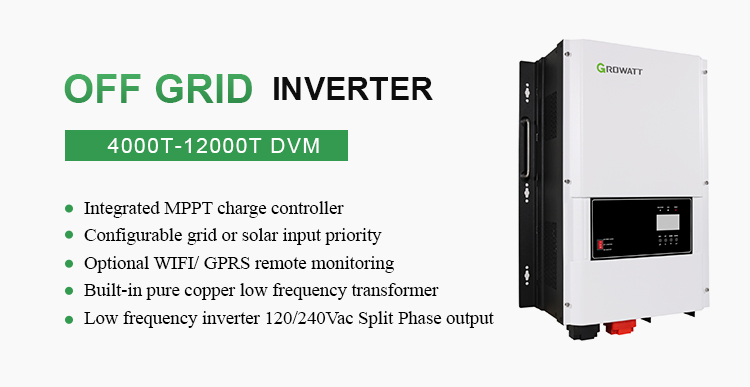

Growatt Off Grid Inverter SPF 12000w DVM Off Grid 3 Phase Solar Panel Inverter

Short Description:

This is a multifunctional split-phase output off grid solar inverter, integrated with a MPPT solar charge controller, a low
frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications.

Place of Origin: Anhui, China

Brand Name: GROWATT

Model Number: SPF 4000-12000T DVM

Input Voltage: 48V

Output Voltage: 110V/120V/220V/230V/240V

Output Current: 52A

Output Frequency: 50Hz/60Hz Auto

Output Type: Single/Split phase

Size: 650*460*255mm

Type: DC/AC Inverters

Inverter Efficiency: 99.99%

Certificate: CE(IEC/EN62109-1,-2),ROHS2.0

Warranty: 5 years

Weight: 76 kg

Inverter type: Off Grid MPPT Solar Inverter

Output voltage waveform: Pure sine wave

Battery type: Lead acid or lithium battery

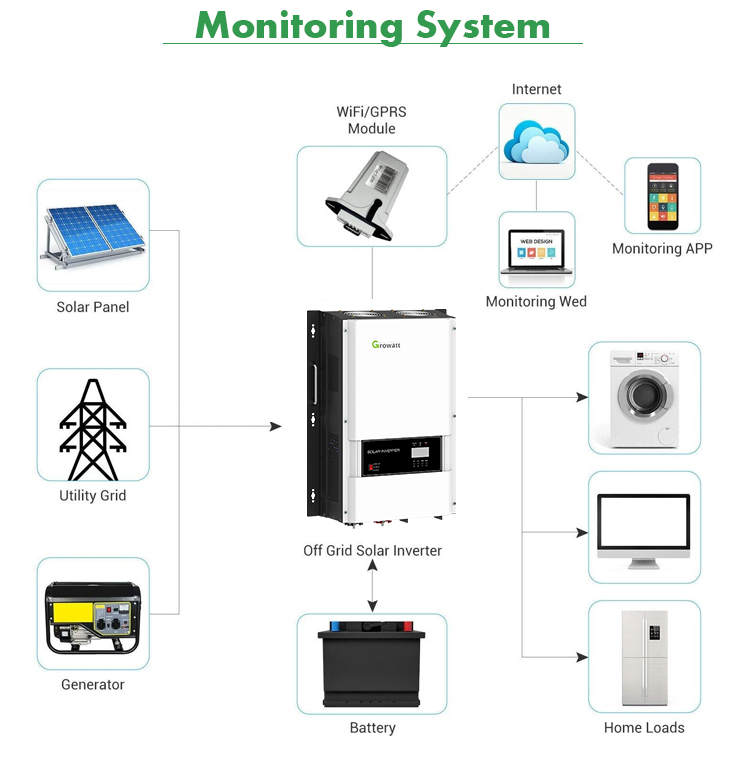

Communication interface: USB/RS485(WiFi/GPRS)/Dry node control

EMC certification level: EN61000

Noise: ≤60dB

Output short circuit protection: Circuit breaker

Product name: Off-Grid Solar Inverter

Heat dissipation: Forced air cooling, variable speed of fan

Application: Solar Power System Home

Send email to us

Product Detail

Alibaba

Product Tags

Datasheet	SPF 4000T DVM	SPF 5000T DVM	SPF 6000T DVM	SPF 8000T DVM	SPF 10000T DVM	SPF 12000T DVM
Battery Voltage	48DVC
Battery Type	Lithium/Lead-acid
INVERTER OUTPUT
Rated Power	4KW	5KW	6KW	8KW	10KW	12KW
Surge Rating	12KW	15KW	18KW	24KW	30KW	36KW
Waveform	Pure sine wave/same as input(bypass mode)
Nominal Output Voltage RMS	104-110-115-120/208-220-230-240VAC(optional)
Output Frequency	50Hz/60Hz+/-0.3Hz
Inverter Efficiency(Peak)	>85%
Transfer Time	10ms(max)
SOLAR CHARGER
Maximum PV Charge Current	80A			120A
Maximum PV Array Power	5000W			7000W
Number of independent MPP trackers/string per MPP tracker	1/1			2/1
MPPT Range@Operating Voltage(VDC)	60~145VDC			60~145VDC
Maximum PV Array Open Circuit Voltage	150VDC			150VDC
Maximum Efficiency	>98%			>98%
AC INPUT
Voltage	240VAC
Selectable Voltage Range	184~272VAC(UPS);154~272VAC(APL)
Frequency Range	50Hz/60Hz (Auto sensing)
Max.Charging Current	40A	50A	60A	70A	80A	100A
MECHANICAL SPECIFICATIONS
Protection Degree	IP20
Dimensions(W/H/D)	360/540/218mm	360/540/218mm	360/540/218mm	380/650/225mm	380/650/225mm	380/650/225mm
Weight	42kg	47kg	52kg	64kg	66kg	75kg
OPERATING ENVIRONMENT
Operation Temperature Range	0°C to 45°C
