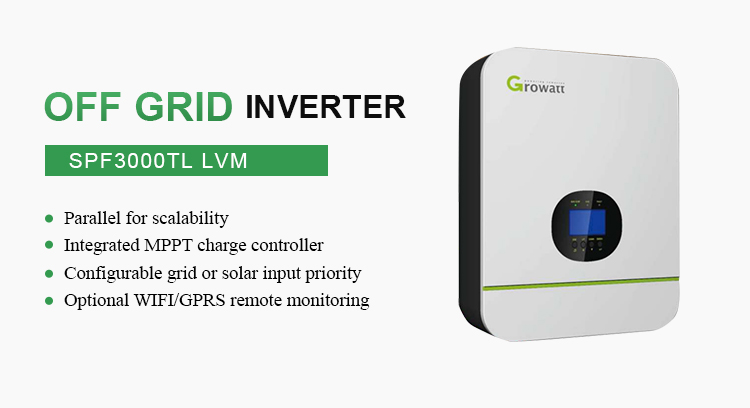

Growatt SPF 3000TL LVM-24P Solar Inverter 3KW Single Phrase Mppt Inverter Pure Sine Wave for Solar Energy System

Short Description:

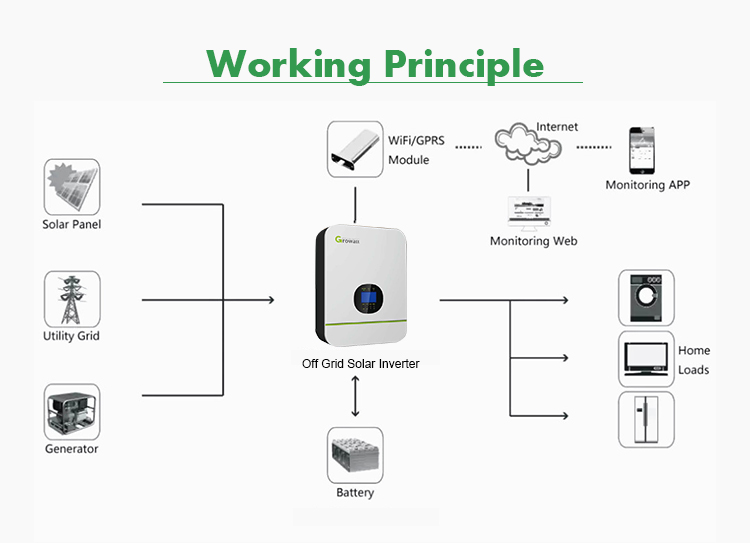

This is a multifunctional off grid solar inverter, It is an inverse control integrated machine with built-in MPPT controller.a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off gridbackup power and self-consumption applications.

The transformerless design provides reliable power conversion in compact size. It can support the access of mains and diesel generators. It has a beautiful appearance, compact structure, and supports multiple monitoring methods.

Place of Origin: Anhui, China

Brand Name: Growatt

Model Number: SPF 3000TL LVM-24P

Input Voltage: 230 VAC

Output Voltage: 230VAC ± 5% @ 50/60Hz

Output Current: 80A

Output Frequency: 50Hz/60Hz

Output Type: Single Phase

Size: 130*350*455mm

Type: DC/AC Inverters

Inverter Efficiency: 98%

Certificate: CE,EN62109

Warranty: 5Years, 5 Years

Weight: 11.5kg

Product Name: Growatt SPF 3000TL LVM-24P

Inverter type: Off-grid Solar Power Inverter

Application: Solar Power System Home

Battery type: Lead Acid/ Lithium

Waveform: Pure Sine Wave Inverter

Battery Voltage: 24VDC

Maximum Solar Charge Current: 80A

Controller type: MPPT Solar Controller 3KW

Send email to us

Product Detail

Alibaba

Product Tags

Technical Documentation
Datasheet	SPF 3000TL LVM-24P	SPF 3000TL LVM-48P
Battery Voltage	24VDC	48VDC
INVERTER OUTPUT
Rated Power	3000VA/3000W	3000VA/3000W
Parallel Capability	Yes	Yes
AC Voltage Regulation(Battery Mode)	120VAC ±5% @ 50/60Hz	120VAC ±5% @ 50/60Hz
Surge Power	6000VA	6000VA
Efficiency (Peak)	93%
Waveform	Pure sine wave
Transfer Time	10ms (For Personal Computers); 20ms (For Home Appliances)
SOLAR CHARGER
Maximum PV Array Power	2000W	45000W
MPPT Range @ Operating Voltage	30VDC ~115VDC	60VDC ~ 115VDC
Maximum PV Array Open Circuit Voltage	145VDC	145VDC
Maximum Solar Charge Current	80A	80A
Maximum Efficiency	98%
Standby Power Consumption	2W
AC CHARGER
Maximum AC Charge Current	60A	40A
AC Input Voltage	120VAC	120VAC
Selectable Voltage Range	95-140 VAC ( For Personal Computers); 65-140 VAC (For Home Appliances)
Frequency Range	50Hz/60Hz (Auto sensing)	50Hz/60Hz (Auto sensing)
PHYSICAL
Dimension (D/W/H) in mm	130/350/455	130/350/455
Net Weight (kgs)	11.5	11.5
OPERATING ENVIRONMENT
Humidity	5%-95% Relative Humidity (Non-condensing)
Operating Temperature	0℃~55℃
Storage Temperature	-15℃~60℃
