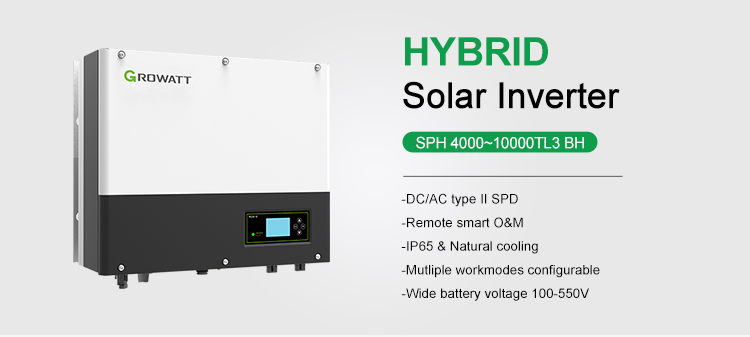

hybrid growatt inverter on/off grid growatt hybrid inverter 48v growatt hybrid inverter 3-phase 6kw 10kw 12 kw

-DC/AC type II SPD

-Remote smart O&M

-IP65 & Natural cooling

-Mutliple workmodes configurable

-Wide battery voltage 100-550V

Place of Origin: Jiangsu, China

Brand Name: Growatt

Model Number: SPH10000TL3 BH

Input Voltage: 160V-1000V/600V

Output Voltage: 230V/400V(310V-476V) 3W+N+PE

Output Current: 15.2A

Output Frequency: 50Hz/60Hz

Output Type: Triple

Size: 505*453*198mm

Type: DC/AC Inverters

Inverter Efficiency: 97.5%-98.2%

Certificate: CE, IEC, VDE, G98, PO, UNE

Warranty: 5Years,10Years(Optional)

Weight: 28KG

Product Name: Growatt 10KW Hybrid Solar Inverter

Inverter type: Three Phase Growatt 10kW Hybrid Inverter

Battery Type: Lithium Ion Battery

Keyword: Growatt SPH 10000TL3 BH Hybrid Inverter

Battery Voltage: 100-550V

Feature: USER-FRIENDLY/FLEXIBLE/SAFE&RELIABLE

AC connection: Connector

Start Voltage: 160Vdc

Protection Degree: IP 65

Topology: Transformerless Solar Inverter

Product Detail

Datasheet	SPH4000 TL3 BH	SPH5000 TL3 BH	SPH6000 TL3 BH	SPH7000 TL3 BH	SPH80000 TL3 BH	SPH100000TL3 BH
Input data(PV)
Max. recommended PV power (for module STC)	5200W	6500W	7800W	9100W	10400W	13000W
Max. DC Voltage	1000V
Start Voltage	160V
MPP Voltage Range	160V-1000V/600V
No. of MPP trackers	2
No. of PV String per MPP tracker	1
Max. Input Current per MPP tracker	12A
Max. Short-circuit Current per MPP tracker	15A
Output data(AC)
AC Nominal Power	4000W	5000W	6000W	7000W	8000W	10000W
Max. AC apparent Power	4000VA	5000VA	6000VA	7000VA	8000VA	10000VA
Nominal AC Voltage	230V/400V (310~476V)
AC Grid Frequency	50Hz/60Hz (45Hz-55Hz/55Hz-65Hz)
Max. Output Current	6.1A	7.6A	9.1A	10.6A	12.1A	15.2A
Adjustable Power Factor	0.8leading…0.8lagging
THDi	<3%
AC Grid Connection Type	3W+N+PE
Battery data (DC)
Battery voltage range	100~550V
Max charging and discharging current	25A
Continuous charging and discharging power	4000W	5000W	6000W	7000W	8000W	10000W
Type of battery	Lithium battery
