JA solar mono half cell bifacial solar panel 530W 535W 540W 545W 550W double glass pv module

JA solar mono half cell bifacial solar panel 530W 535W 540W 545W 550W double glass pv module Featured Image
  • JA solar mono half cell bifacial solar panel 530W 535W 540W 545W 550W double glass pv module
  • JA solar mono half cell bifacial solar panel 530W 535W 540W 545W 550W double glass pv module
  • JA solar mono half cell bifacial solar panel 530W 535W 540W 545W 550W double glass pv module
  • JA solar mono half cell bifacial solar panel 530W 535W 540W 545W 550W double glass pv module

Short Description:

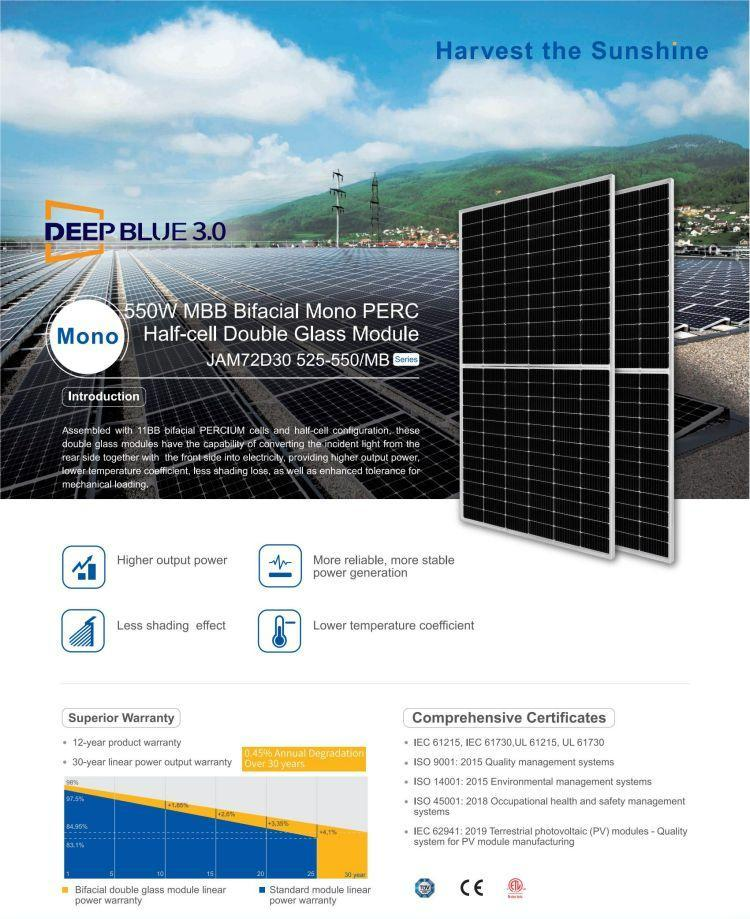

Assembled with 11BB bifacial PERCIUM cells and half-cell configuration,thesedouble glass modules have the capability of converting the incident light from therear side together with the front side into electricity, providing higher output power,lower temperature coefficient, less shading loss, as well as enhanced tolerance formechanical loading.
  • Brand Name: JA Solar
  • Model Number: JAM72D30 530-550/MR
  • Place of Origin: China
  • Cell size: 182mmx182mm
  • Type: PERC, Half Cell, MBB, 144cell solar panel
  • Panel Dimensions: 2285*1134*35mm
  • Panel Efficiency: 21%
  • Certificate: CE/TUV
  • Warranty: 30 years linear warranty
  • Solar cell: 182mm MBB mono half cell
  • Application: Solar power system
  • Weight: 31.6kg
  • Junction Box: IP 68, 3 Diodes
  • Maximum system Voltage: DC 1000V (IEC) / 1500V
  • Brand: JA Solar Original Authentic
  • OEM Order: Acceptable
  • Frame: Anodized Aluminium Alloy
  • Packaging Configuration: 31 Per Pallet

    • Product Detail

    Alibaba

    Product Tags

    72d30m1 72d30mb2 ce
