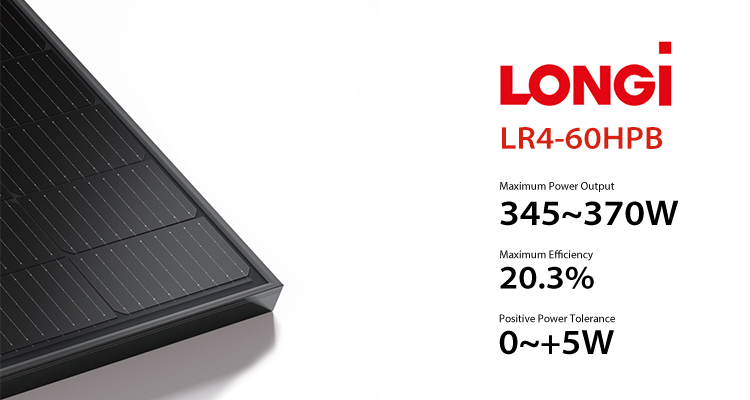

Longi pv solar photovoltaiac panels solar panel cell 345W 350W 355W 360W 365W 370W
|
Model Number
|
LR4-60HPB-345M
|
LR4-60HPB-350M
|
||
|
Testing Condition
|
STC
|
NOCT
|
STC
|
NOCT
|
|
Maximum Power（Pmax/W）
|
345
|
257.6
|
350
|
261.4
|
|
Open Circuit Voltage（Voc/V)
|
40.2
|
37.7
|
40.4
|
37.9
|
|
Short Circuit Current(lsc/aA)
|
11.06
|
8.95
|
11.16
|
9.02
|
|
Voltage at Maximum Power(Vmp/V)
|
34.2
|
31.8
|
34.4
|
32
|
|
Current at Maximum Power(Imp/A)
|
10.09
|
8.09
|
10.18
|
8.16
|
|
Module Efficiency(%)
|
18.9
|
19.2
|
||
|
Model Number
|
LR4-60HPB-355M
|
LR4-60HPB-360M
|
||
|
Testing Condition
|
STC
|
NOCT
|
STC
|
NOCT
|
|
Maximum Power（Pmax/W）
|
355
|
265.1
|
360
|
268.8
|
|
Open Circuit Voltage（Voc/V)
|
40.6
|
38.1
|
40.8
|
38.2
|
|
Short Circuit Current(lsc/aA)
|
11.25
|
9.09
|
11.33
|
9.16
|
|
Voltage at Maximum Power(Vmp/V)
|
34.6
|
32.2
|
34.8
|
32.4
|
|
Current at Maximum Power(Imp/A)
|
10.27
|
8.23
|
10.35
|
8.3
|
|
Module Efficiency(%)
|
19.5
|
19.8
|
||
|
Model Number
|
LR4-60HPB-365M
|
LR4-60HPB-370M
|
||
|
Testing Condition
|
STC
|
NOCT
|
STC
|
NOCT
|
|
Maximum Power（Pmax/W）
|
365
|
272.6
|
370
|
276.3
|
|
Open Circuit Voltage（Voc/V)
|
41
|
38.4
|
41.2
|
38.6
|
|
Short Circuit Current(lsc/aA)
|
11.41
|
9.23
|
11.5
|
9.3
|
|
Voltage at Maximum Power(Vmp/V)
|
35
|
32.6
|
35.2
|
32.8
|
|
Current at Maximum Power(Imp/A)
|
10.43
|
8.36
|
10.52
|
8.43
|
|
Module Efficiency(%)
|
20
|
20.3
|
||
