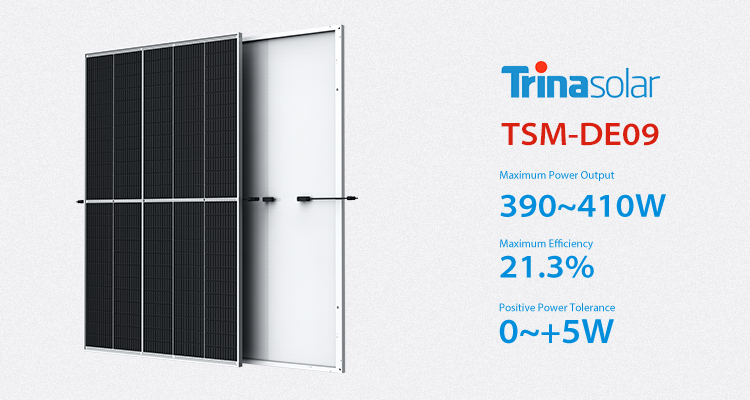

Top sale Trina Solar Vertex S Monocrystalline Solar Panel price 390w 395w 400w 405w 410w

Short Description:

Compact size, small board type power up to 405W, high density module technology to achieve a maximum efficiency of 21.1%
Multi-Main-Barrier (MBB) technology is applied to improve optical utilization and reduce internal current loss

Lower temperature coefficient (-0.34%) and lower operating temperature for more power generation

  • Brand Name: trina solar
  • Model Number: TSM-DE09 390-410W
  • Place of Origin: Jiangsu, China
  • Cell size: 210mm*210mm
  • Type: PERC, Half Cell, Bifacial, Double-glass
  • Panel Dimensions: 1754*1096*30 mm
  • Panel Efficiency: 21.3%
  • Certificate: TUV/CE
  • Warranty: 25 years
  • Weight: 21.0 kg
  • Backsheet: Branco
  • Product name: Solar Panel Components
  • Encapsulant material: EVA/POE
  • Glass: 3.2 mm
  • Solar Cells: Monocrystalline
  • J-Box: IP 68 rated
  • Cables: Photovoltaic Technology Cable 4.0mm2
  • Frame: 30mm
  • Product Detail

    Alibaba

    Product Tags

    de092



    Electrical Characteristics
    Maximum Power(Pmax/W)
    390
    395
    400
    405
    410
    Voltage at Maximum Power(Vmp/V)
    33.8
    34.0
    34.2
    34.4
    34.6
    Current at Maximum Power(Imp/A)
    11.54
    11.62
    11.70
    11.77
    11.85
    Open Circuit Voltage(Voc/V)
    40.8
    41.0
    41.2
    41.4
    41.6
    Short Circuit Current(lsc/aA)
    12.14
    12.21
    12.28
    12.34
    12.40
    Module Efficiency(%)
    20.3
    20.5
    20.8
    21.1
    21.3
