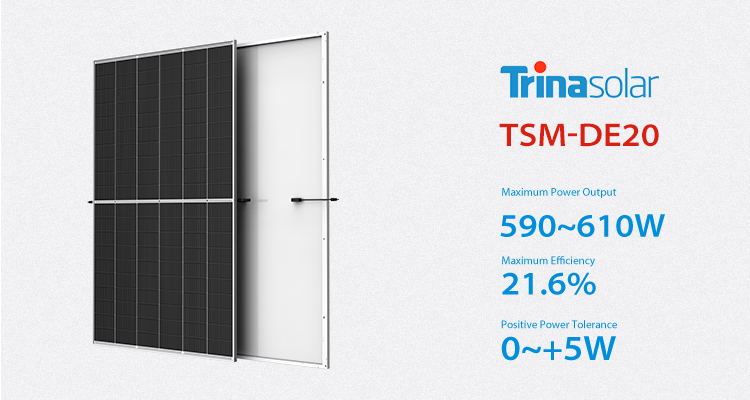

Trina Solar Panel Vertex 210mm cells Mono Solar Module 590W 595W 600w 605w 610W high power solar panel

➤ Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time

➤Lowest guaranteed first yearand annual degradation;

➤Designed for compatibility with existing mainstream system components

Brand Name: trina solar

Model Number: TSM-DE20

Place of Origin: Jiangsu, China

Cell size: 210mmx210mm

Type: PERC, Half Cell, Bifacial, Double-glass

Panel Dimensions: 2172*1303*33 mm

Panel Efficiency: 21.6%

Certificate: CE TUV

Warranty: 25 years

Weight: 30.6 kg

Backsheet: White

Product name: Solar Panel Components

Encapsulant material: EVA/POE

Glass: 3.2mm

Solar Cells: Monocrystalline

J-Box: IP 68 rated

Cables: Photovoltaic Technology Cable 4.0mm2

Frame: 33mm

Product Detail

Electrical Characteristics
Maximum Power（Pmax/W）	585	590	595	600	605
Voltage at Maximum Power(Vmp/V)	33.8	34.0	34.2	34.4	34.6
Current at Maximum Power(Imp/A)	17.31	17.35	17.40	17.44	17.49
Open Circuit Voltage（Voc/V)	40.9	41.1	41.3	41.5	41.7
Short Circuit Current(lsc/aA)	18.37	18.42	18.47	18.52	18.57
Module Efficiency(%)	20.7	20.8	21.0	21.2	21.4
