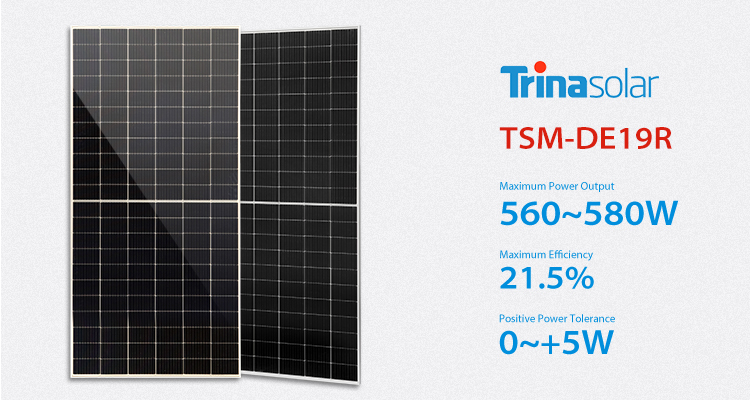

Trina Solar Solar Panel Certificate Monocrystalline 560w 570w 580w Double Sided PERC Monocrystalline Solar Panel

➤Excellent IAM and low light response performance verified by third parties

➤Unique layout design provides enhanced resistance toshadow blocking

➤Lower temperature coefficient (-0.34%) and lower operating temperature for more power generation

Brand Name: Trina

Model Number: TSM-DE19R

Place of Origin: Jiangsu, China

Cell size: 210mm*210mm

Type: PERC, Half Cell, Bifacial, Double-glass

Panel Dimensions: 2384*1134*35 mm

Panel Efficiency: 21.5%

Certificate: TUV/CGC

Warranty: 25years

Weight: 29.1kg

Back Sheet: White

Product Name: Solar Panel Components

Encapsulant material: EVA/POE

Glass: 3.2 mm

Solar Cells: Monocrystalline

J-Box: IP 68 rated

Cables: Photovoltaic Technology Cable 4.0mm2

Frame: 35mm

Product Detail

Electrical Characteristics
Maximum Power（Pmax/W）	560	565	570	575	580
Voltage at Maximum Power(Vmp/V)	38.0	38.3	38.5	38.8	39.0
Current at Maximum Power(Imp/A)	14.72	14.76	14.79	14.83	14.86
Open Circuit Voltage（Voc/V)	45.3	45.6	45.8	46.1	46.3
Short Circuit Current(lsc/aA)	15.76	15.81	15.85	15.90	15.94
Module Efficiency(%)	20.7	20.9	21.1	21.3	21.5
