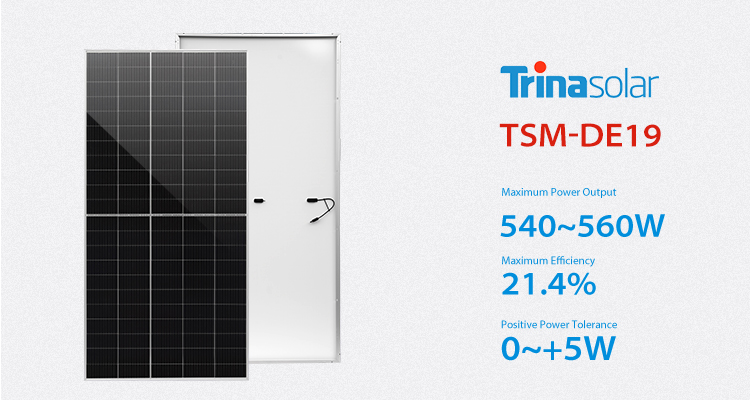

Trina solar Vertex cell panels 540W 545W 550W 555W 560W Solar power panels energy system

➤Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time

➤Lowest guaranteed first yearand annual degradation;

➤Designed for compatibility with existing mainstream system components
➤Higher return on Investment

Brand Name: trina solar

Model Number: TSM-DE19

Place of Origin: Jiangsu, China

Cell size: 210mmx210mm

Type: PERC, Half Cell

Panel Dimensions: 2384*1096*35 mm (93.86*43.15*1.38 inches)

Panel Efficiency: 21.4%

Certificate: CE TUV

Warranty: 25 years warranty

Weight: 28.6 kg

Backsheet: White

Product name: Solar Panel Components

Encapsulant material: EVA/POE

Glass: 3.2 mm

Solar Cells: Monocrystalline

J-Box: IP 68 rated

Cables: Photovoltaic Technology Cable 4.0mm2

Frame: 35mm

Product Detail

Electrical Characteristics
Maximum Power（Pmax/W）	535	540	545	550	555	560
Voltage at Maximum Power(Vmp/V)	31.0	31.2	31.4	31.6	31.8	32.0
Current at Maximum Power(Imp/A)	17.28	17.33	17.37	17.40	17.45	17.49
Open Circuit Voltage（Voc/V)	37.3	37.5	37.7	37.9	38.1	38.3
Short Circuit Current(lsc/aA)	18.36	18.41	18.47	18.52	18.56	18.60
Module Efficiency(%)	20.5	20.7	20.9	21.0	21.2	21.4
