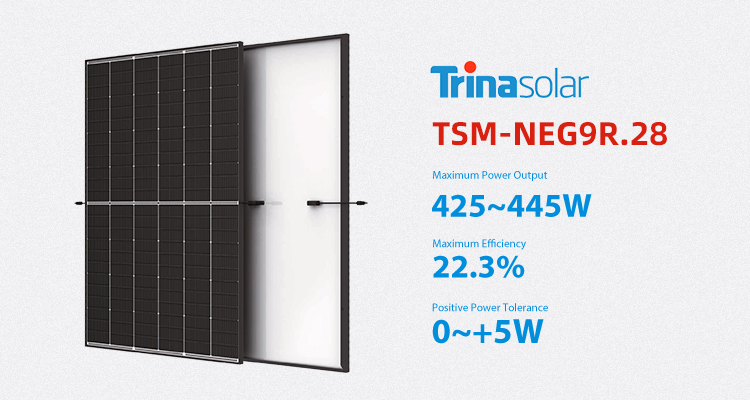

Trina Vertex S TSM-NEG9R.28 445W 144 Cells Bifacial Dual Glass N type i-TOPCon Solar Modules Photovoltaic Panels

Trina Vertex S TSM-NEG9R.28 445W 144 Cells Bifacial Dual Glass N type i-TOPCon Solar Modules Photovoltaic Panels Featured Image
  • Trina Vertex S TSM-NEG9R.28 445W 144 Cells Bifacial Dual Glass N type i-TOPCon Solar Modules Photovoltaic Panels
  • Trina Vertex S TSM-NEG9R.28 445W 144 Cells Bifacial Dual Glass N type i-TOPCon Solar Modules Photovoltaic Panels
  • Trina Vertex S TSM-NEG9R.28 445W 144 Cells Bifacial Dual Glass N type i-TOPCon Solar Modules Photovoltaic Panels

Short Description:

Compact size, small board type power up to 405W, high density module technology to achieve a maximum efficiency of 21.1%
Multi-Main-Barrier (MBB) technology is applied to improve optical utilization and reduce internal current loss

Lower temperature coefficient (-0.34%) and lower operating temperature for more power generation
  • Brand Name: trina solar
  • Model Number: TSM-NEG9R.28
  • Place of Origin: Jiangsu, China
  • Cell size: 182mmx210mm
  • Type: PERC, Half Cell, Bifacial, Double-glass
  • Panel Dimensions: 1762x1134x30 mm
  • Panel Efficiency: 22.3%
  • Certificate: TUV/CE
  • Warranty: 25 years
  • Weight: 21.1kg
  • Front Glass: 1.6 mm, High Transmission, AR Coated Heat Strengthened
  • Encapsulant material: EVA/POE
  • Back Glass: 1.6 mm, Heat Strengthened Glass
  • Frame: 30 mm Anodized Aluminium Alloy, Black
  • J-Box: IP 68 rated
  • Connector: TS4/MC4 EVO2*
