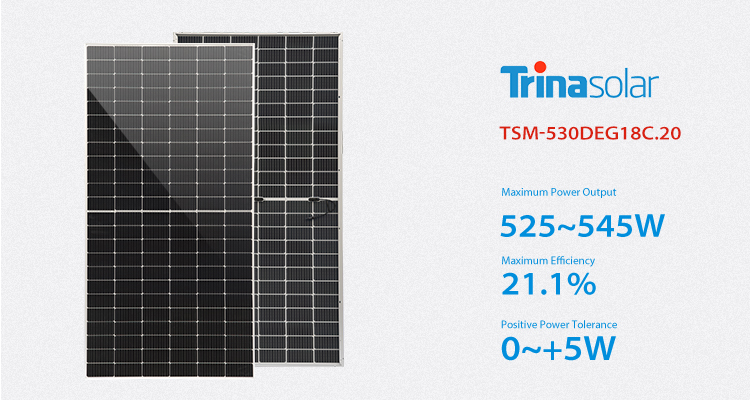

Trinasolar PV modules Mono Bifacial solar cell 525W – 545W solar panel energy on sale

Short Description:

➤Effectively reduce system BOS costs, achieve lower cost of electricity, and improve project profitability ➤Lower first-year and year-to-year decay values, 30-year power generation warranty

➤Compatible with mainstream system designs
➤Higher return on investment

  • Brand Name: Trinasolar
  • Model Number: TSM-DEG18C.20
  • Place of Origin: Jiangsu, China
  • Cell size: 182mmx182mm
  • Type: PERC, Half Cell, Bifacial, Double-glass
  • Panel Dimensions: 2278*1134*30 mm
  • Panel Efficiency: 21.1%
  • Certificate: ISO IEC TUV CE
  • Warranty: 25years
  • Weight: 32.2 kg (71.0 lb)
  • Front Glass: 2.0 mm (0.08 inches), High Transmission
  • Encapsulant material: POE/EVA
  • Back Glass: 2.0 mm (0.08 inches), Heat Strengthened Glass
  • Frame: 30mm(1.18 inches) Anodized Aluminium Alloy
  • J-Box: IP 68 rated
  • Cables: Photovoltaic Technology Cable 4.0mm2
  • Connector: MC4 EVO2 / TS4*
  • Modules per box: 36 pieces
  • Modules per 40' container: 720 pieces
  • Product Detail

    Alibaba

    Product Tags

    deg18c3

    Electrical Characteristics
    Maximum Power(Pmax/W)
    525
    530
    535
    540
    545
    Voltage at Maximum Power(Vmp/V)
    40.7
    40.9
    41.2
    41.4
    41.6
    Current at Maximum Power(Imp/A)
    12.91
    12.95
    13.00
    13.04
    13.09
    Open Circuit Voltage(Voc/V)
    48.9
    49.1
    49.3
    49.5
    49.8
    Short Circuit Current(lsc/aA)
    13.70
    13.75
    13.80
    13.85
    13.90
    Module Efficiency(%)
    20.3
    20.5
    20.7
    20.9
    21.1

    jama ce
